Epoxy Resin in Industrial Coatings: Performance and Formulation

Epoxy resin is one of the most widely used binder materials in industrial coatings because it can provide strong adhesion, chemical resistance, mechanical strength, and durable protection. In a well-designed epoxy coating, the resin forms the structural backbone of the cured film, while curing agents, pigments, fillers, solvents, and reactive diluents adjust processing and final performance. The role of glycidyl ether in epoxy systems shows how even viscosity-control materials can influence the way an epoxy resin coating is applied and cured.

This combination of properties makes epoxy resin particularly important in flooring, steel protection, tanks, machinery, pipelines, marine structures, and other industrial environments where coatings need to do more than provide color or appearance. A good epoxy coating must remain attached to the substrate, resist chemicals and moisture, tolerate mechanical wear, and maintain film integrity throughout its intended service life.

However, epoxy coating performance is not determined by epoxy resin alone. Resin type, curing chemistry, pigment loading, crosslink density, film thickness, substrate preparation, and application conditions all influence the finished coating. Understanding these relationships helps formulators and buyers select materials based on actual performance requirements rather than treating all epoxy systems as interchangeable.

Why Is Epoxy Resin So Common in Industrial Coatings?

The main advantage of epoxy resin is its ability to form a highly crosslinked network after curing. This network gives an epoxy coating a combination of adhesion, hardness, chemical resistance, and mechanical durability that is difficult to achieve with many single-component coating systems.

Epoxy groups within the resin react with curing agents such as amines, polyamides, anhydrides, or other compatible hardeners. As curing progresses, the molecular structure changes from a liquid or semi-solid resin into a three-dimensional polymer network.

The final epoxy coating performance therefore depends heavily on how completely and evenly that network develops. Incorrect resin-to-curing-agent ratios, poor mixing, low curing temperature, or incompatible raw materials can all reduce the expected benefits of the epoxy resin.

Adhesion Is One of the Main Strengths of Epoxy Coatings

Industrial coatings often fail at the interface between the coating and substrate. If the film cannot remain firmly attached, chemical resistance and hardness become much less important because the coating may peel or delaminate before those properties can provide protection.

Epoxy resin generally offers good adhesion to properly prepared steel, concrete, and many mineral surfaces. Polar groups in the resin and curing system help create strong interactions with the substrate, while the cured network provides cohesive strength within the film.

Surface preparation remains essential. Oil, rust, dust, moisture, and poorly bonded old coatings can prevent an epoxy coating from achieving its intended adhesion. The broader relationship between raw material polarity and coating adhesion is therefore relevant even when epoxy resin is the main binder.

For industrial primers and protective systems, the practical goal is not simply to maximize initial adhesion. The coating needs to maintain that bond under moisture, temperature cycling, chemical exposure, and mechanical stress.

How Epoxy Resin Improves Chemical Resistance

Chemical resistance is another major reason epoxy coatings are widely used in industrial environments. Once properly cured, the dense polymer network can slow the penetration of water, oils, cleaning agents, salts, and many industrial chemicals.

The actual level of resistance depends on the specific epoxy resin, curing agent, crosslink density, coating thickness, and chemical exposure conditions. An epoxy coating that performs well against water or mild alkali may not automatically be suitable for strong acids, aggressive solvents, or high-temperature chemical service.

Formulators therefore need to match the resin and curing system to the real exposure environment. Contact time also matters. Occasional splashes and continuous immersion place very different demands on epoxy coating performance.

Crosslink density matters

A higher crosslink density can reduce molecular movement and make it more difficult for chemicals to penetrate the film. This often improves hardness and chemical resistance, but excessive crosslinking may also make the epoxy coating more brittle.

This is why coating design usually involves a balance rather than a single maximum target. The same trade-off appears in other coating chemistries, where coating hardness must be balanced with flexibility and long-term film integrity.

Hardness and Toughness Are Not the Same Property

Epoxy resin can produce hard coating films, but a harder film is not automatically a tougher or more durable one. Hardness describes resistance to scratching, indentation, or deformation, while toughness describes the ability to absorb stress without cracking or breaking.

For an industrial epoxy coating, both may be important. Floor coatings need enough hardness to resist abrasion, but they also need sufficient toughness to tolerate impact and substrate movement. Protective coatings on steel structures may face thermal expansion, vibration, and mechanical loading in addition to surface wear.

Formulators can adjust this balance through resin selection, curing-agent chemistry, reactive diluent level, flexibilizers, fillers, and overall crosslink density. In polyurethane-related systems, polyester polyol selection illustrates a similar need to balance mechanical strength with flexibility and chemical resistance.

Viscosity Has a Direct Effect on Epoxy Coating Application

Many epoxy resins have relatively high viscosity, which can make mixing, pumping, substrate wetting, spraying, or self-leveling more difficult. High viscosity can also increase the risk of trapped air and make it harder for the coating to penetrate porous concrete or complex surface profiles.

Traditionally, volatile solvents can be used to reduce application viscosity. However, modern industrial formulations increasingly try to reduce unnecessary solvent content, especially in high-solids and low-emission coating systems.

Reactive diluents provide another option. Materials such as alkyl glycidyl ether can lower viscosity while retaining reactive epoxy functionality, allowing them to become part of the cured network instead of simply evaporating. This approach can help create a lower-viscosity epoxy resin system while preserving higher solids content.

Reducing viscosity must still be done carefully. Too much reactive diluent can change crosslink density, hardness, chemical resistance, flexibility, and curing behavior. The objective is not merely to make an epoxy coating thinner, but to achieve the application viscosity needed without compromising the final performance target.

Where Epoxy Resin Coatings Are Commonly Used

The versatility of epoxy resin allows it to be used across a wide range of industrial coating applications. The exact formulation changes considerably depending on substrate, film thickness, curing conditions, and exposure environment.

Industrial flooring

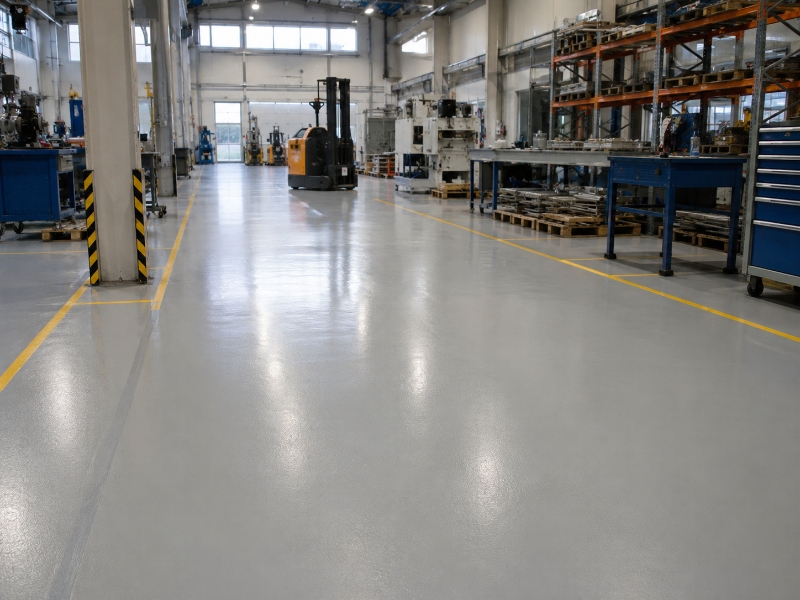

Epoxy flooring systems are used in factories, warehouses, workshops, parking structures, and processing facilities. These coatings can provide abrasion resistance, chemical resistance, ease of cleaning, and strong adhesion to properly prepared concrete.

Steel and anti-corrosion coatings

Epoxy primers and intermediate coats are widely used to protect steel from moisture and corrosive environments. Their strong adhesion and barrier properties make epoxy resin suitable for multi-layer protective systems.

Tanks and secondary containment

Chemical resistance makes selected epoxy coatings useful for tanks, containment areas, and industrial surfaces exposed to oils, chemicals, or process fluids. The formulation must still be matched to the actual chemical and temperature conditions.

Machinery and equipment

Equipment coatings need resistance to impact, oils, cleaning, abrasion, and repeated handling. Epoxy coating performance can be adjusted through resin, curing agent, pigment, and filler selection to meet these requirements.

Epoxy Resin and the Move Toward High-Solids Coatings

Industrial coating development increasingly emphasizes higher solids content, reduced solvent use, and more efficient application. Epoxy resin is well suited to this direction because many epoxy systems can be formulated at high solids or even without conventional volatile solvents.

High-solids coatings allow more dry film to remain on the substrate from each wet application. This can reduce the amount of volatile solvent released per unit of dry coating, although actual VOC performance depends on the complete formulation and applicable regulations.

The trade-off is viscosity. As solvent content decreases, the epoxy resin system often becomes harder to mix and apply. Reactive diluents, lower-viscosity resin grades, temperature control, and formulation optimization can help address this challenge.

This development is part of a broader coatings transition. Waterborne systems manage film formation through a different route, where coalescent selection and minimum film forming temperature become important. High-solids epoxy coatings instead focus on maintaining workable viscosity while reducing the need for volatile material.

What Most Often Reduces Epoxy Coating Performance?

Even a suitable epoxy resin can produce poor results if formulation or application conditions are not controlled. Many failures are related to processing rather than the inherent quality of the resin.

• Incorrect resin-to-curing-agent ratio can leave the film under-cured or overly brittle.

• Insufficient mixing can create areas with uneven curing.

• Poor substrate preparation can reduce adhesion and promote delamination.

• Application below the recommended temperature can slow curing and affect film development.

• Excessive solvent or reactive diluent can reduce final coating properties.

• Moisture contamination can interfere with some curing systems and surface quality.

• Incorrect film thickness can affect curing, solvent release, and barrier performance.

For this reason, epoxy coating performance should be evaluated as the result of the complete system: resin, hardener, modifiers, pigments, substrate preparation, application, and curing conditions.

FAQ

Why is epoxy resin used in industrial coatings?

Epoxy resin is used because it can provide strong adhesion, chemical resistance, mechanical strength, hardness, and barrier protection after proper curing.

What determines epoxy coating performance?

Epoxy coating performance depends on resin type, curing agent, mixing ratio, crosslink density, pigments and fillers, film thickness, substrate preparation, application conditions, and curing quality.

Are epoxy coatings chemical resistant?

Many epoxy coatings offer good chemical resistance, but resistance varies by formulation and exposure conditions. The specific chemical, concentration, temperature, and exposure time should be considered.

Can epoxy resin be used in low VOC coatings?

Yes. Epoxy systems can be formulated at high solids or with reduced conventional solvent content. Reactive diluents and lower-viscosity epoxy grades can help maintain practical application viscosity.

Why is low viscosity important in an epoxy coating?

Lower viscosity can improve mixing, flow, substrate wetting, air release, penetration into porous surfaces, and application efficiency. It still needs to be balanced with cured film properties.
